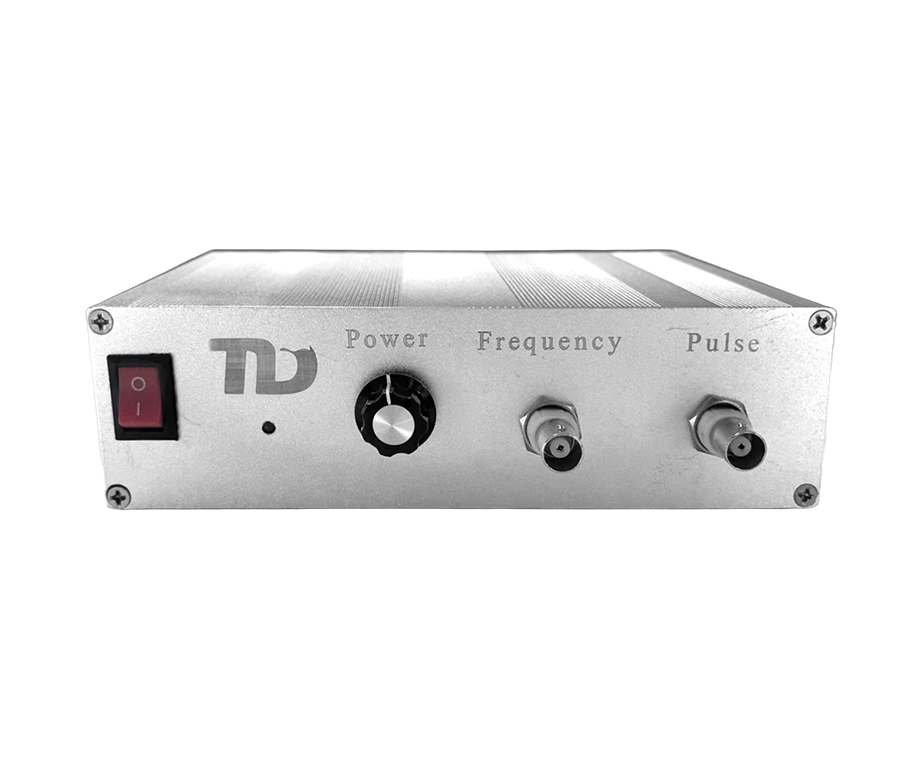

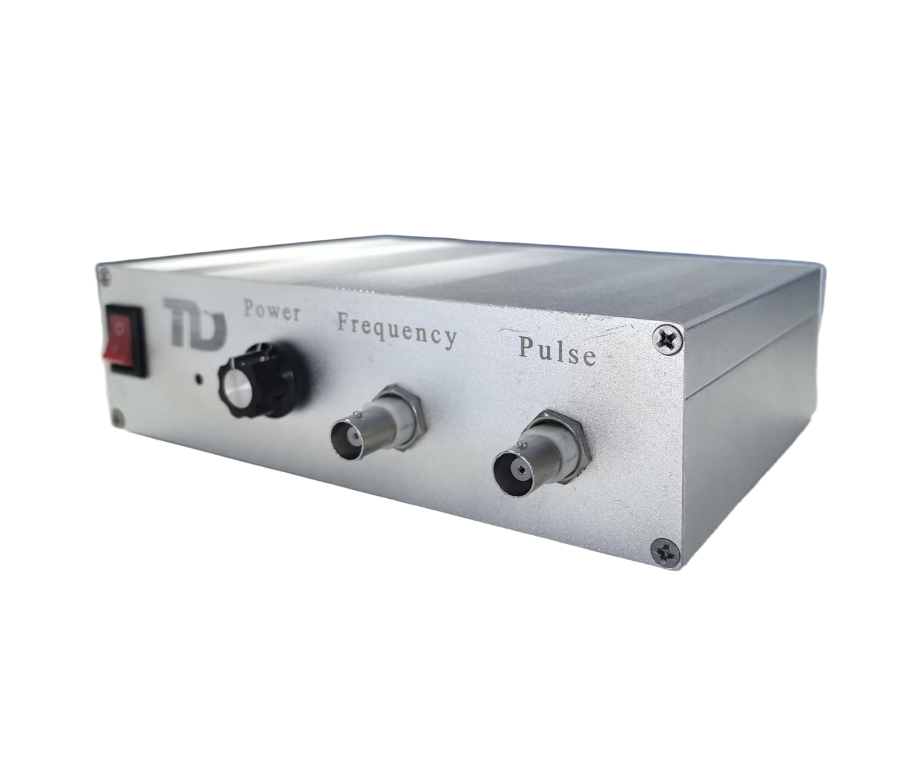

power amplifier
A power amplifier is an instrument that can amplify the output signal and, under a given distortion rate, generate the maximum power output to drive a specific load.
Product details
Product introduction
A power amplifier is an instrument that can amplify the output signal and, under a given distortion rate, generate the maximum power output to drive a specific load.
The power amplifier designed by Tiandun can be used in conjunction with mainstream signal generators to achieve perfect signal amplification, converting the input low-voltage sine signal into a high-voltage square wave signal.
Main application scenarios
It is mainly used for experimental testing of equipment such as hydrophones in colleges and universities.
Technical specification
(1) Max. Output Voltage: ±100V
(2) Bandwidth: 100Hz-200kHz (-3dB)
(3) Voltage gain: adjustable, 20～40 times
(4) Output pulse duration: adjustable
(5) Output interfaces: SMA / BNC
(6) Input: BNC connector
(7) Input resistance: 50Ω
(8) Power supply voltage: DC 12～24V

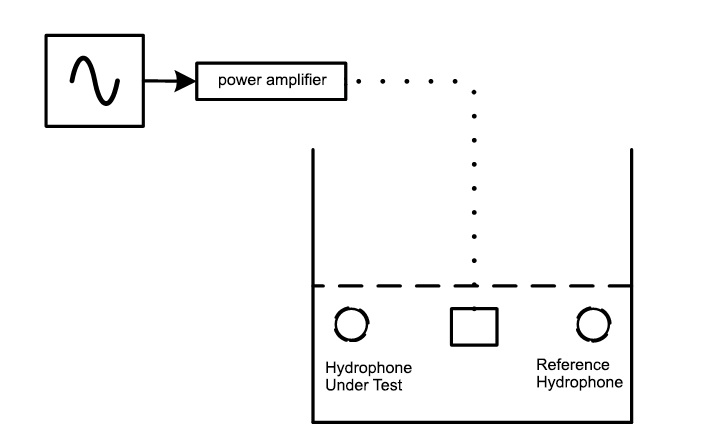

System Connection Diagram
 |
