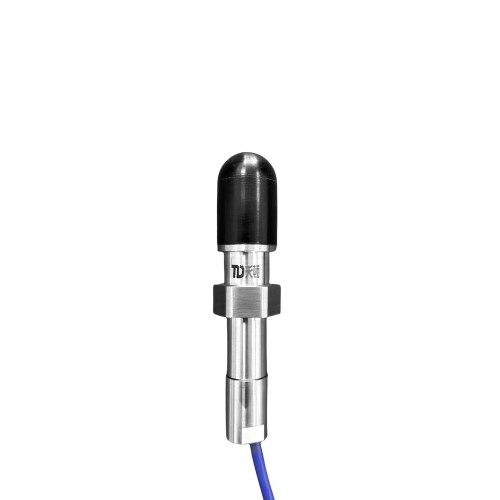

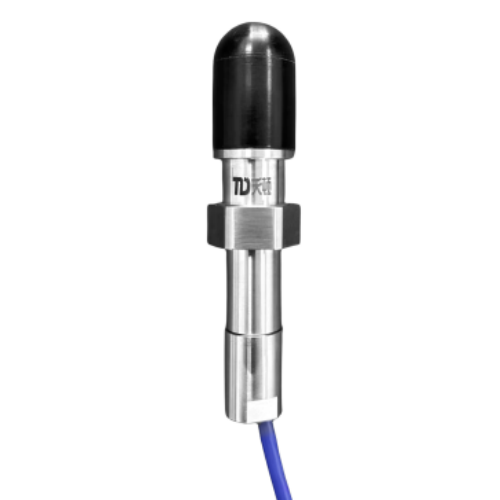

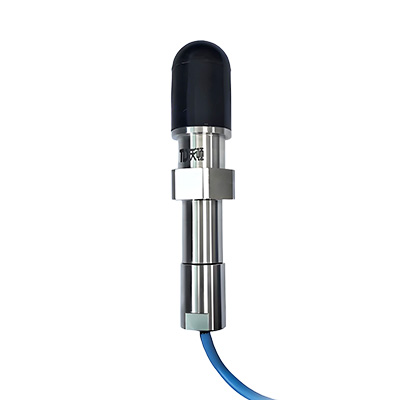

HTD-62 Deep sea spherical hydrophone

An omnidirectional response of up to 200kHz with excellent acoustic characteristics of low noise and durability

Product details

1

Product introduction

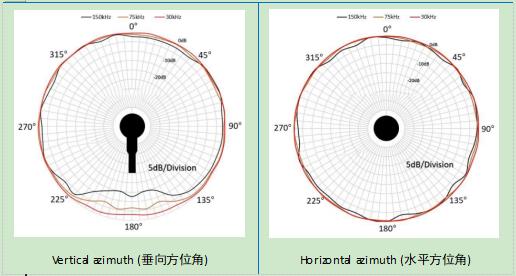

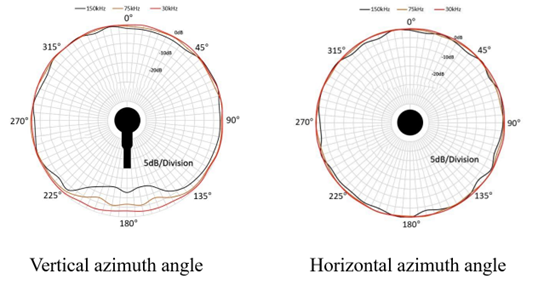

The HTD-62 Deep-sea Spherical Hydrophone adopts a high-strength spherical structure design, specially designed for extreme high-pressure environments in the deep sea. It has passed the 60MPa (about 6000 meters working depth) pressure test certification and has excellent reliability and durability. This product uses high-performance spherical piezoelectric ceramic components and can be paired with a 10-40dB preamplifier to cover a wide frequency range of 10Hz-200kHz, achieving 360 ° omnidirectional acoustic response. HTD-62 has the characteristics of low background noise, compressive stability, and full frequency sensitivity, making it an ideal acoustic detection device for deep-sea resource exploration, marine environment monitoring, underwater acoustic communication, and other fields.

2

Main application scenarios

ü   Hydrophones of sonar buoys

ü   Transducers for underwater positioning

ü   Reference hydrophones, noise measurement

ü   Measurement of ultrasonic cavitation noise

ü   Passive acoustic monitoring

ü   Forming hydrophone arrays or vector

ü   Marine bio-acoustics

3

Technical specification

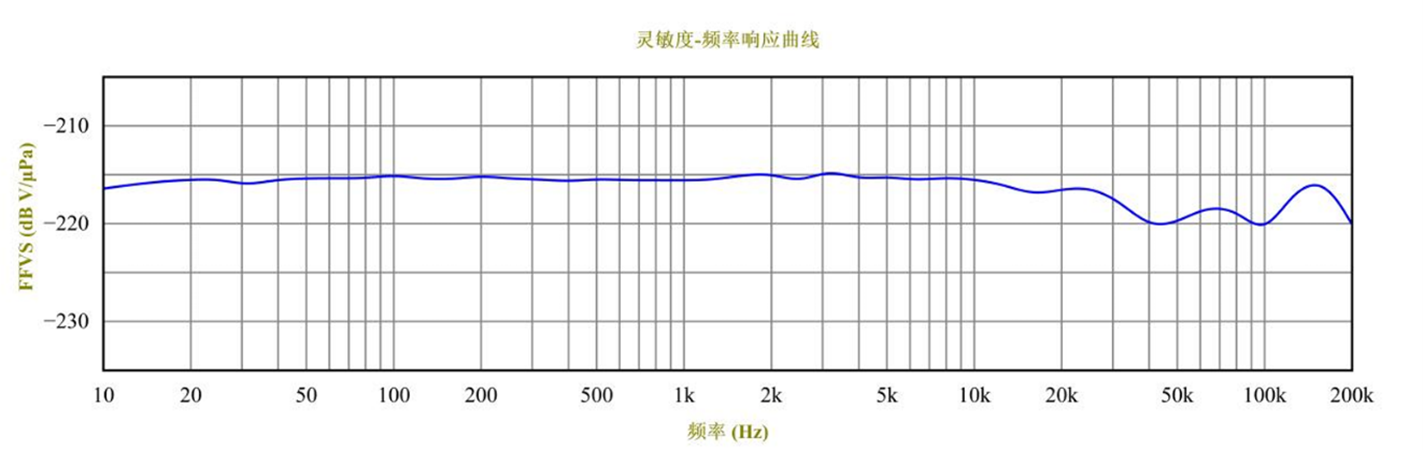

Sensitivity:      -215 dB V/μPa @1kHz ±2dB

Band width:    10Hz ~ 200kHz

Pre-amplifier: None (10 - 40dB optional)

Output type:  Single Ended output (differential output optional)

Cable:   2m length with Coax/BNC (max 1000m optional)

Size:        Φ 28 (Sphericity) x140mm

Weight:   300g, with 1m cable

Max working depth:       6000 meters

Operating temperature:        -10°C ~ +80°C

Storage temperature:    -40 °C ~ +80 °C
