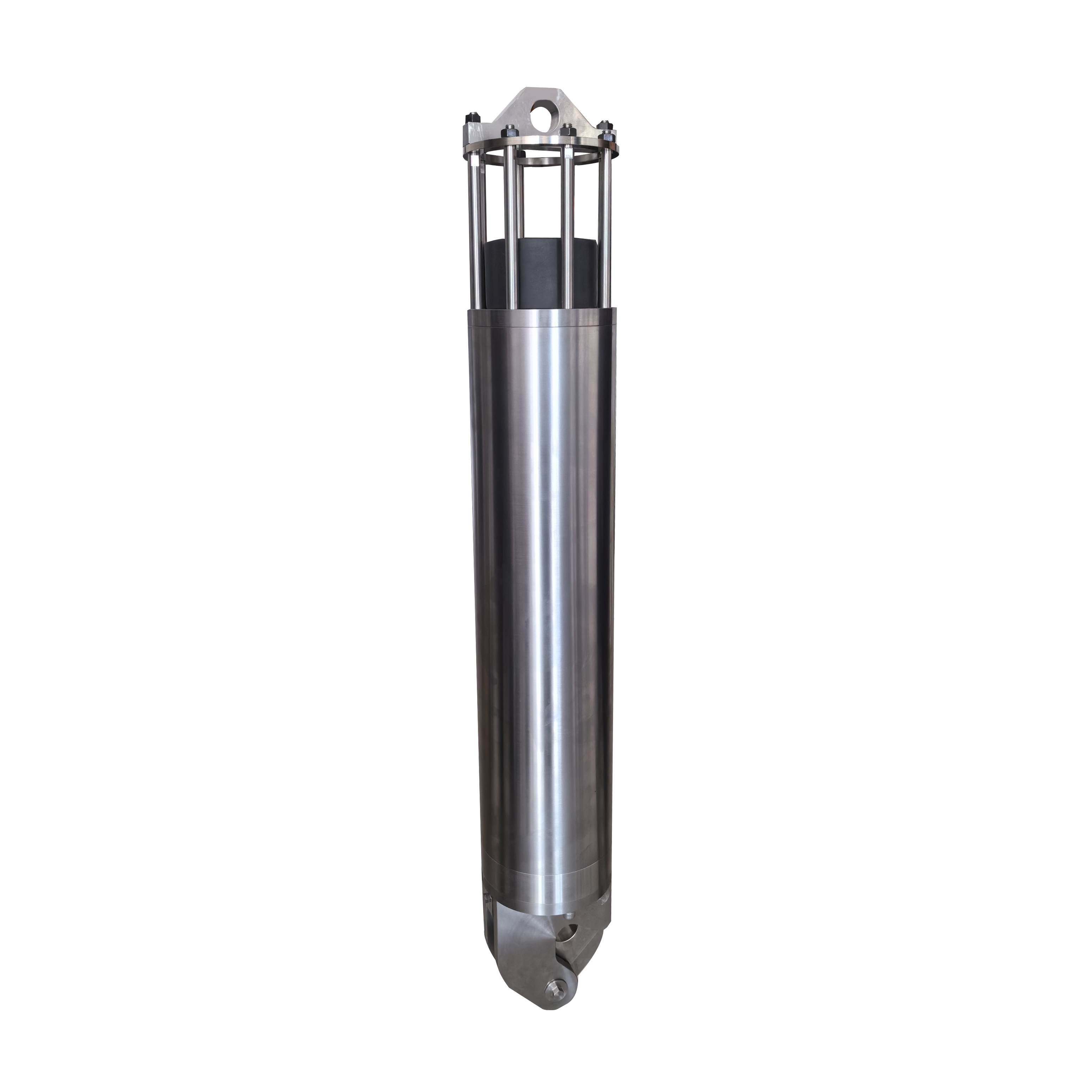

SinoAR-04 Mechanical Marine Acoustic Release

The SinoAR-04 Mechanical Marine Acoustic Release is a high-performance marine equipment release system, specifically designed to provide reliable equipment release in complex marine environments.

Product details

1

Product introduction

The SinoAR-04 Mechanical Marine Acoustic Release is a high-performance marine equipment release system, specifically designed to provide reliable equipment release in complex marine environments. This release combines mechanical operation with acoustic control technology, offering an efficient and precise release solution.

Performance Advantages

  • Robust Structure: Sturdy design capable of withstanding the pressures of extreme marine environments.

  • Reliable Operation: Ensures stable task execution under various conditions.

  • High Durability: High-quality materials and design provide long-term reliability.

  • Excellent Corrosion Resistance: Uses highly corrosion-resistant materials, suitable for high-salinity marine environments.

  •      l Low Power Consumption Design: Suitable for long-term mooring operations, saving energy and extending equipment service life.

2

Main application scenarios

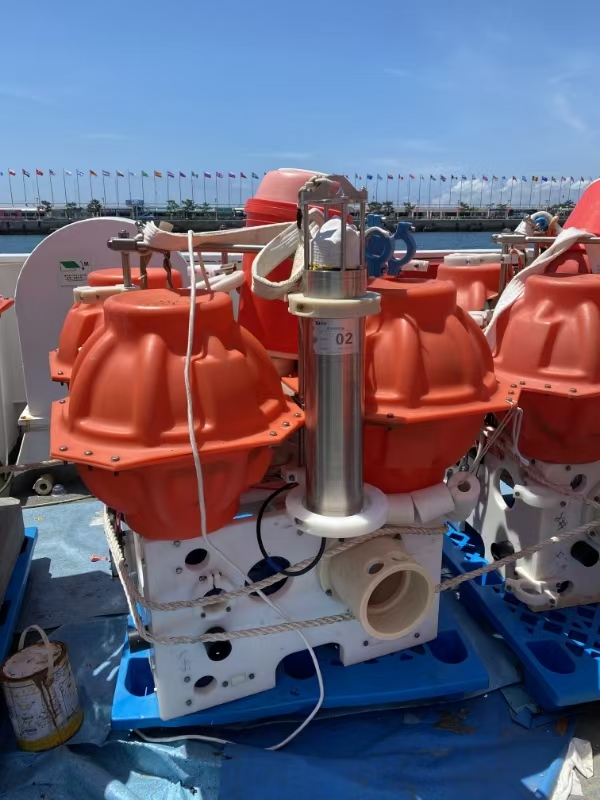

Suitable for deep-sea moorings, bottom-standing platforms, and operations under extreme environmental conditions.

3

Technical specification

(1) Operating Depth: Up to 6,000 meters;

(2) Communication Range: Up to 10,000 meters;

(3) Maximum Operating Time: 6 to 24 months;

(4) Operating Frequency: 7-15 kHz;

(5) Supported Functions: Active release, timed release, ranging;

(6) Material Options: 316L Stainless Steel or Titanium alloy;

(7) Rated Load: 5.5 tonnes;

(8) Total Weight: 20 kg (Weight in air);

(9) Dimensions: 1000 x 130 mm (Length * Diameter);

(10) Battery Type: Rechargeable lithium battery (dry battery optional);

(11) Drive Method: Motor-driven mechanical release mechanism;
