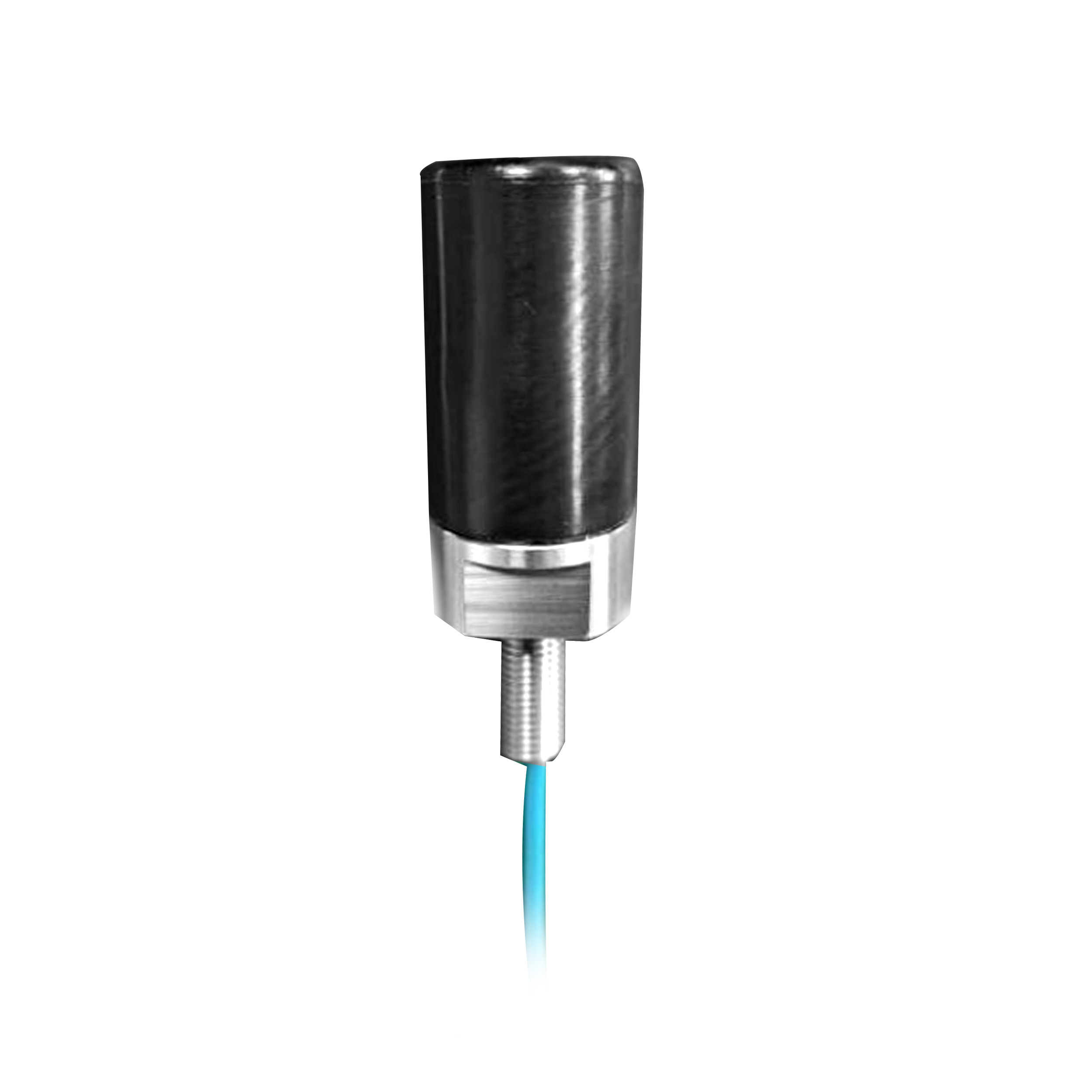

HTD-93 hydrophone

The HTD-93 hydrophone utilizes IEPE technology and can function under a constant current output of either 4 mA or 10 mA.

Message

Product details

Product introduction

The HTD-93 hydrophone utilizes IEPE technology and can function under a constant current output of either 4 mA or 10 mA. It is equipped with a cylindrical piezoelectric ceramic with a sensitivity of -208 dB. By adjusting the amplification factor of the preamplifier, gains of 10 dB, 20 dB, 30 dB, 40 dB, 50 dB, and 60 dB can be achieved. It offers a horizontal omnidirectional response within the frequency range of 2 Hz to 84 kHz. Optionally, threads can be chosen for fixing the hydrophone on pipes.

Main application scenarios

(1) Passive acoustic monitoring;

(2) Measurement of target radiated noise;

(3) Connection to the 4 - 20 mA current loop of the industrial control system.

Technical specification

Serial Number	Parameter	Performance
1	Sensitivity	-178 dB V/μPa @1 kHz
2	Output Current	Constant current of 4 mA (or 10 mA)
3	Operating Frequency Band	2 Hz - 84 kHz
4	Amplification Factor	10 dB, 20 dB, 30 dB, 40 dB, 50 dB, 60 dB
5	Dimensions	Φ28 x 58 mm
6	Thread Specifications (Optional)	M36x2 with a thread length of 25 mmM36x2 with a thread length of 14 mm
7	Weight	420 g
8	Materials	316 steel, acoustic materials
9	Equipment Power Supply	5 - 24 V
10	Driving Cable Length	1000 meters (differential)
11	Operating Temperature	-10 °C - +60 °C
12	Storage Temperature	-20 °C - +60 °C
